We´ll use the module PAN1327 which integrates a complete solution for ANT+ y BT
ANT+ / BT Schematics
userland
DIY Cycling GPS
duallang
Thursday, September 19, 2013
Wednesday, September 18, 2013
GPS - Sensors
We´ll use the MAX6631 temperature sensor
Datasheet: http://www.mouser.com/ds/2/256/MAX6629-MAX6632-89478.pdf
Datasheet: http://www.mouser.com/ds/2/256/MAX6629-MAX6632-89478.pdf
- Range -55ºC -> +125ºC
- Precision +/- 0.2ºC
- Sampling time = 8seg
- Idle current 6uA @ 3.3V
Temperature sensor schematics
The barometer will be MS5611-01BA03
Datasheet: http://www.meas-spec.com/downloads/MS5611-01BA03.pdf
- Resolution: 10cm
- Conversion time 1ms
- Current 1uA
- Interface SPI or I2C
- Range 10 to 1200mbar
- Integrated Termometer (+/- 2ºC)
Barometer schematics
We´ll use the combined accelerometer/magnetometer/gyroscope LSM9DS0
Datasheet: http://www.st.com/st-web-ui/static/active/en/resource/technical/document/datasheet/DM00087365.pdf

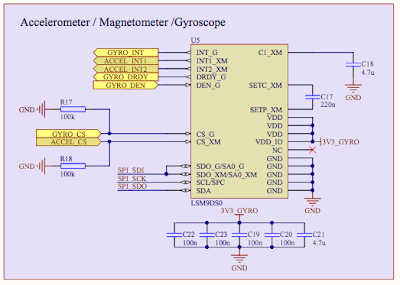

Accelerometer schematics
Ambient light sensor will be APDS-9004
Datasheet: http://www.mouser.com/ds/2/38/V01-0184EN-107079.pdf
Ambien light sensor schematics
GPS - GNSS Module
We´ll use the swiss made u-blox MAX 7Q GNSS module with the following features:
- GPS / GLONASS / QZSS
- UART or I2C interface
- Real time clock RTC with integrated crystal
- Timepulse generation
- 56 channels
- 2m horizontal precision
- A-GPS compatible
- Active/passive antennas supported
- 3.3V operation
- Tracking mode current draw @ 1Hz -> 5mA
- Dimensions 10 x 9.6 x 2.2 mm
- Weight 0.6g
- Price 59€ @1pc (€12.63 @100pcs)
http://www.u-blox.com/images/downloads/Product_Docs/MAX-7_DataSheet_(GPS.G7-HW-12012).pdf
We´ll also use a LNA amplifier suitable for GNSS band (MAX2659) and a chip antenna (AF816M157502-T)
LNA datasheet: http://www.mouser.com/ds/2/256/MAX2659-74449.pdf
antenna datasheet: AF 816M157502 Spec
GPS Schematics
Tuesday, September 17, 2013
GPS - Speaker
We´ll use a 12mm diameter, 0,7g weight speaker (254-PS600-RO)
http://www.mouser.com/ds/2/209/KT-400402-194153.pdf
http://www.mouser.com/ds/2/209/KT-400402-194153.pdf
Price: $2.58 @ 1pc ($1.78 @ 100pcs)
As we just need to play some low quality tone alerts, we´ll use the simplest one-transistor amp driven from a MCU GPIO.
Speaker schematics
GPS - Buttons
We´ll use right angle tactile pushbuttons mounted on pcb edge
http://www.alps.com/products/WebObjects/catalog.woa/E/HTML/Tact/SurfaceMount/SKSL/SKSLLAE010.html
http://es.mouser.com/ProductDetail/ALPS/SKSLLAE010/?qs=sGAEpiMZZMsgGjVA3toVBNCaPNgfU%252bJCTYCpZkB%252bZDs%3d
Price: $0.286 @ 1pc ($0.23 @ 100pc)
http://www.alps.com/products/WebObjects/catalog.woa/E/HTML/Tact/SurfaceMount/SKSL/SKSLLAE010.html
http://es.mouser.com/ProductDetail/ALPS/SKSLLAE010/?qs=sGAEpiMZZMsgGjVA3toVBNCaPNgfU%252bJCTYCpZkB%252bZDs%3d
Price: $0.286 @ 1pc ($0.23 @ 100pc)
Buttons Schematics
GPS - LCD Schematics
LCD schematics
Backlight schematics
For the lcd backlight, i´ll be using 4 white 1206 sized leds driven by PWM output from the MCU.
Leds will be mounted directly on the main pcb on the back of the lcd panel.
Monday, September 16, 2013
GPS - Screen selection
I´ve been looking at some options for the e-paper LCD panel. Probably the best option, considering price, availability and quality is one from Sharp´s Memory LCD lineup (http://www.sharpmemorylcd.com)
Memory LCD de 2.7" (LS027B7DH01)
Price: $37.16 @ 1pc ($26.80 @ 100pcs)
Product Specification: http://www.sharpmemorylcd.com/resources/LS027B7DH01_Spec.pdf
Mouser link: http://es.mouser.com/ProductDetail/Sharp-Microelectronics/LS027B7DH01/?qs=sGAEpiMZZMvEZpvz4iUm3h4lv3%252bqmbbZ
Connector:
FP12
0.5mm pitch
10 pins
Price: $1.13 @ 1pc ( $0.843 @ 100pcs)
We´ll use http://www.mouser.com/ds/2/307/XF2M_1110-32350.pdf
Power requirements:
We´ll need to provide 5VDC to the panel.
We´ll use a single 5V bus VDDA=VDD.
Panel power requirement is 50uW aprox (5V @ 10uA aprox) with static image and 175uW (5V @35uA) refreshing at 1Hz
Worst case scenario would be 350uW refreshing at 1Hz. As we want to refresh at 2Hz we´ll assume 700uW.
In other words, 5V @ 140uA.
So the panel would require 3.36mAh (at 5V) to operate 24h. Perhaps 10mAh at the battery (3.7V) considering level conversion efficiency.
Controller requirments:
Panel will happily take data bus at 3.3V
It would need SPI + 2 GPIO from the mcu
MCU SPI SDO -> LCD SI
MCU SPI SCK( 1 MHz ) -> LCD SCLK
MCU SPI CS -> LCD SCS
MCU GPIO1 (with weak pulldown) -> LCD DISP
MCU GPIO2 (with weak pulldown) -> LCD EXTCOMIN
LCD EXTMODE -> VDD
